Shuttle Mobile Shelving - Side to Side Moving

The Shuttle Mobile Shelving System bays move side to side and can increase your storage capoacity by up to 100% without taking up a lot of floor space. Call us now to discuss this very space efficient and cost effective storgae system

  • Manufactured in high grade powder-coated steel. The standard colour is off-whitew (cream) but other colours are available on inquiry
  • The shuttle mobile shelving system is designed so bays of panel shelving move sideways and this minimises the floor space taken and also provides additional access to shelves for staff
  • The mobile bases are fitted with two x 60mm side wheels with heavy duty 'sealed for life' bearings (for stability)and the chasis is mounted with an anti tilt track for operator safety. Operator safety is further enhanced by an overhead rail/tracking system
  • Floor preparation for this system is reduced to an absolute minimum and if relocation is required in the future this is a simple inexpensive exercise when compared with traditional mobile shelving systems
  • The aluminium track is fitted to the floor and the rear bays are affixed to a wall
  • There are four rear bay width options - 600mm, 900mm, 1000mm and 1200mm with the standard shuttle bay widths being 900mm and 1200mm
  • The system offers two height options - 1850mm and 2150mm
  • For shelf depths there are five options for rear entry shelves - 300mm, 350mm, 400mm, 450mm and 600mm and for shuttle bays there are three x depth options available - 300mm, 350mm and 400mm
  • Due to the wide number of possible configuration scenarios pricing for the shuttle mobile system is provided on inquiry and supplied with configuration drawings. Qualified personnel are available to come on site to assist with scoping the best solution for your requirements

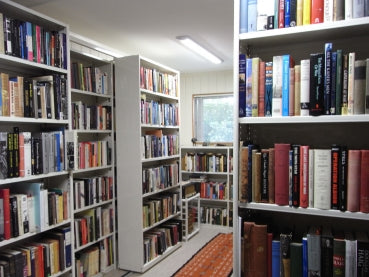

  • Shuttle mobile shelving is very space efficient for storing files, boxes or books
  • For new or refurbished sites the configuration can be drawn and priced from floor plans
  • Pricing will include delivery to site of all components and installation
  • Melteca end panels can be added to the shelving bay ends to provide an aesthetically pleasing finish or to match existing decor
  • 5 year warranty
  • Height:1850mm & 2150mm
  • Width of Rear Bay: 600mm, 900mm, 1000mm & 1200mm
  • Depth of Rear Bay: 300mm, 350mm, 400mm, 450mm, 600mm
  • Width of Shuttle Bays: 900mm & 1200mm
  • Depth of Shuttle Bays: 300mm, 350mm & 400mm
  • Load / Capacity:60kg per shelf
  • Shelves / Levels:Entirely Optional
Contact Us for Pricing

Dispatch within 48hrs

Unless otherwise specified

Made to Order

Allow 12-15 working days for dispatch

Lowest Price Guarantee

Will beat competitors prices by 5%
